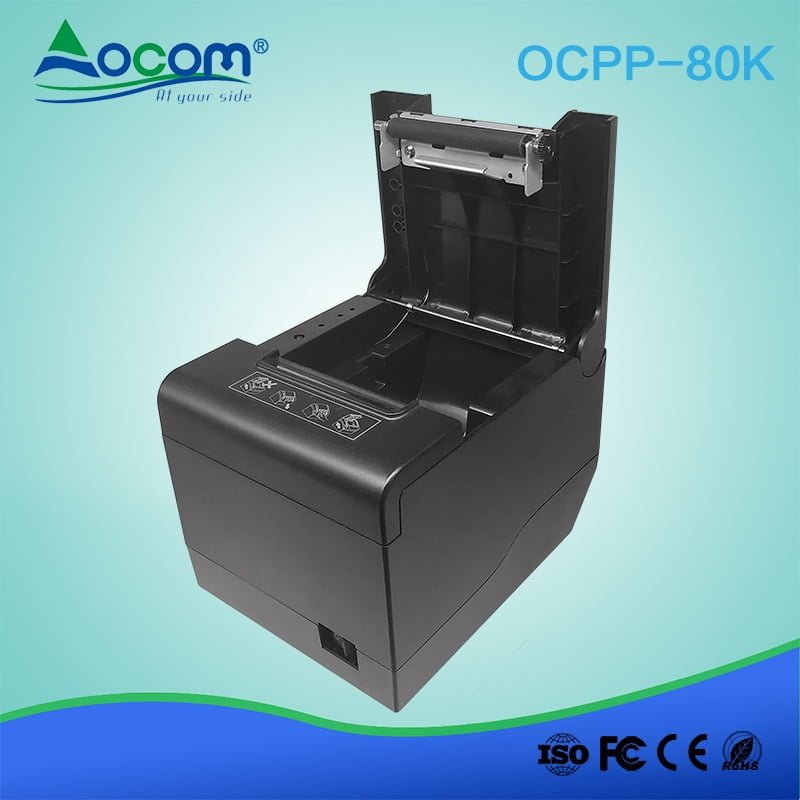

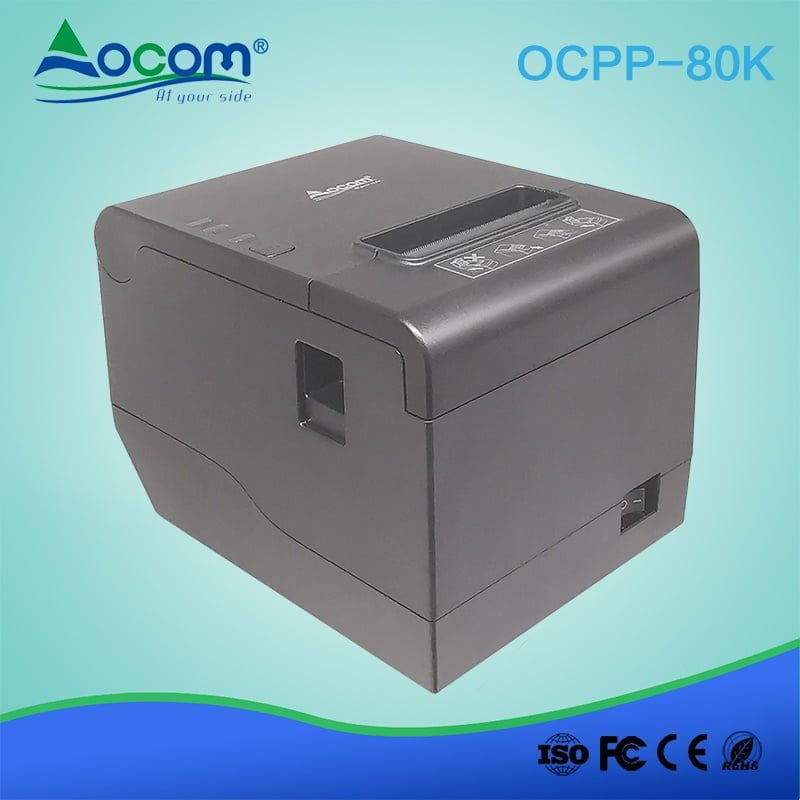

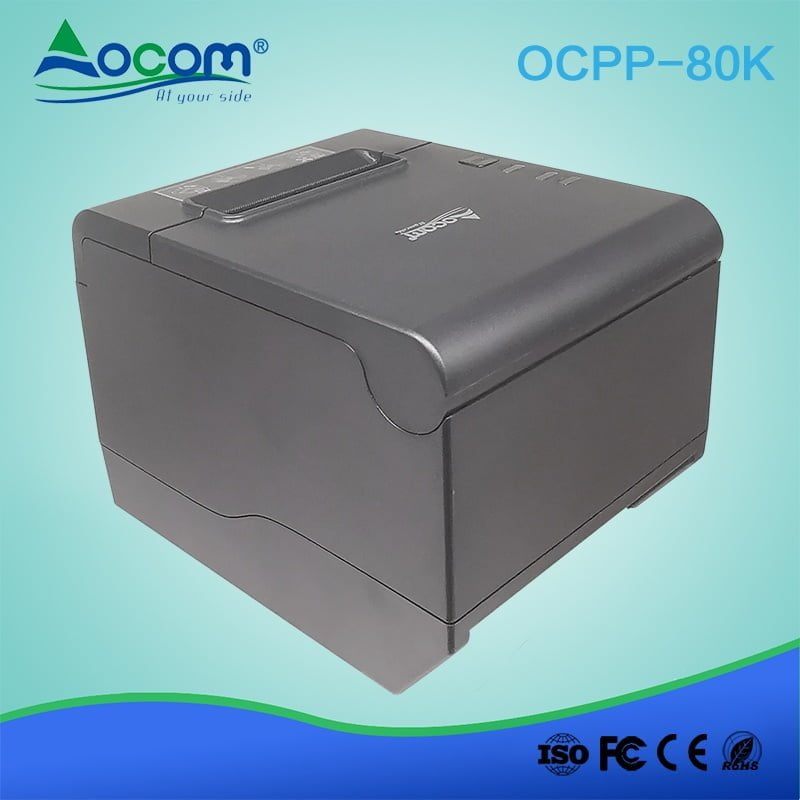

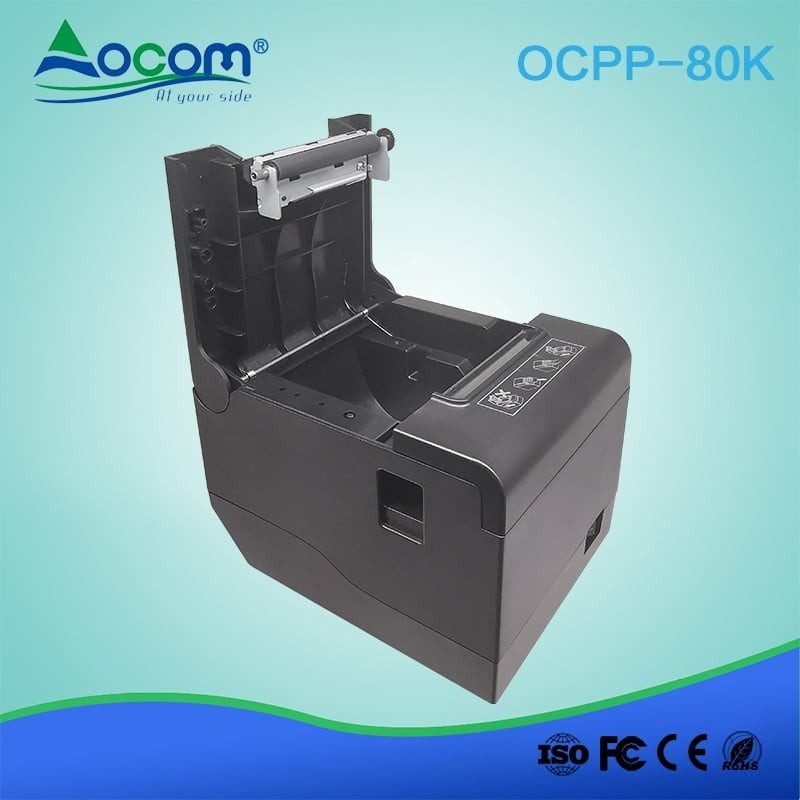

Three Interfaces Thermal Receipt Printer with Auto Cutter
Video e produktit:
https://www.youtube.com/watch?v=D4f8sSEV9O4
- Support 8 kinds abundant interface combination;
- Supports multi 1D barcode and QR code printing;
- Support printer status monitoring function;
- Support printing queuing ticket function;
- 100M Ethernet port, ultra high speed data transmission;
- 256KB NV Logo storage and 256kb big buffer memory;
- 48mm to 80mm adjustable Paper separator for optional;
- Compatible with OPOS/JPOS driver;
- 100KM long life printer head.
Technical parameters：
| Print Method | Direct Thermal | |
| Command | ESC/POS | |
| Resolution | 576dots/line or 512dots/line | |
| Printing Width | Max=72mm | |
| Paper Type | Thermal Receipt Paper | |

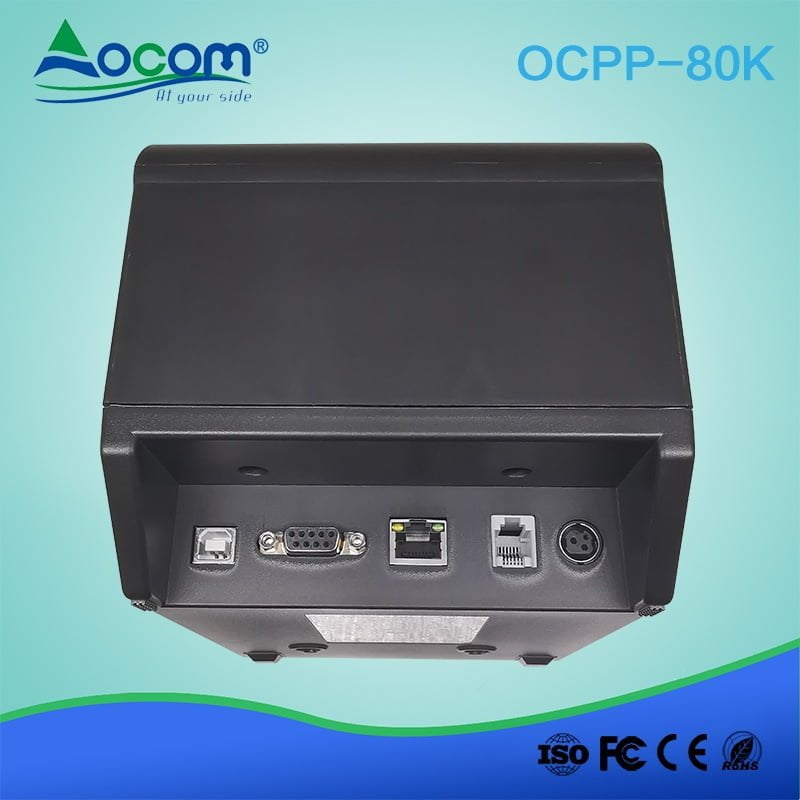

| Interface | USB/UR/UL/URL/U+BT/ U+WIFI/URL+BT/URL+WIFI | |
| Print Speed | 200mm/s (U/UR ) 230mm/s (UL) 260mm/s (U+BT/ U+WIFI/ URL/ URL+BT/ URL+WIFI) |
|
| Paper Width | 48mm/52mm/56mm/64mm/68mm/76mm/80mm | |
| Paper Thickness | 0.06~0.08mm | |
| Roll Dia | Max. Ø 83 mm | |
| Paper Cut | Manual tear and Auto-cutter | |
| Input buffer | 256kbytes | |
| NV Flash | 256kbytes | |
| Font Size | font A:12*24(standard), font B:9*17 | |
| Chinese | GB18030,BIG5 24x24dots | |
| Japanese/Korea | Support | |
| User-defined language | PC347(Standard Europe),Katakana,PC850(Multilingual),PC860(Portuguese),PC863(Canadian-French),PC865(Nordic),West Europe,Greek,Hebrew,East Europe,Iran,WPC1252,PC866(Cyrillic#2),PC852(Latin2), PC858,IranII,Latvian,Arabic,PT151(1251) ect. |
|
| 1D | UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/CODE39/ITF/CODABAR/CODE93/CODE128 | |
| 2D | QR code ( Single USB or UR solution no QR code function) | |
| Printing head life | 100 KM | |
| Cutter life | 1million | |
| Paper separator | Optional | |
| Sensors | Paper out, cover open, cutter jam,paper jam and black mark detection(Optional) | |
| Input | AC 100V-240V 50/60HZ | |
| Output | DC 24V/2.5A | |
| Working Condition | 0°C~45°C, 10%~80%RH | |
| Storage Condition | -10°C-60°C,10%~90%RH | |

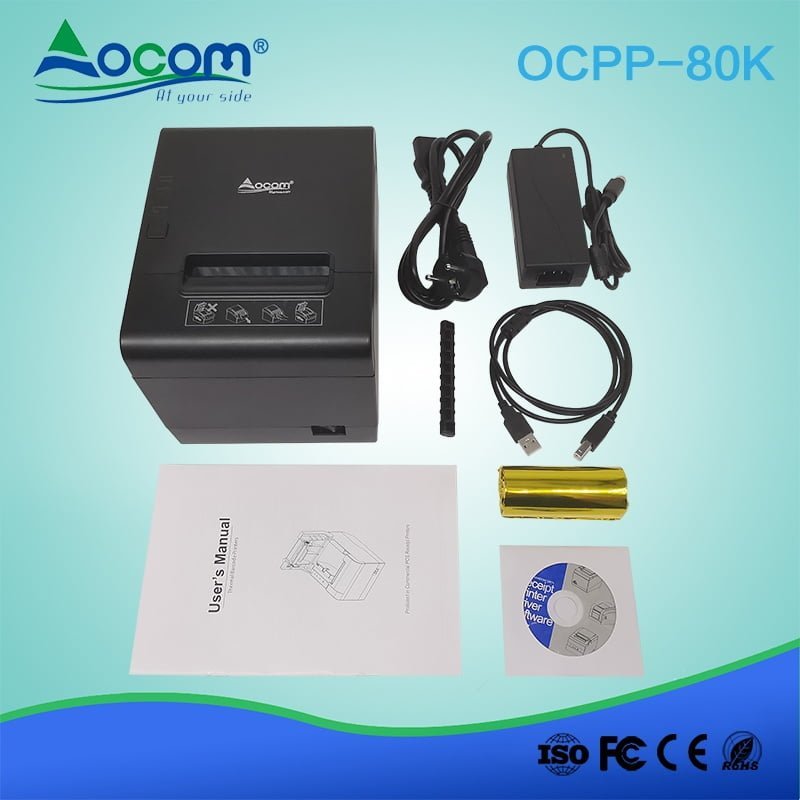

| Accessories | Data cable,power adaptor,power code,paper roller,CD,manual, (standard) Paper separator(option) |
|
| Dimensions | 196(D)x145(W)x135(H)mm | |
| Net weight | 1.14kg | |
| Gross weight | 1.5kg | |
| Individual box |
Dimension 30X19X18cm(LXWXH） |
1unit/carton |
| Master carton |
Dimension 62X36X52cm(LXWXH） |
12units/carton |
| Driver | Windows XP /Vista/ Win7/Win8 /Win10/Win 2000/Win CE/OPOS/JPOS | |
| SDK | Android, IOS | |
